Qunfeng Heavy Industry -- Kitchen, Kitchen Waste Comprehensive Treatment System
Kitchen waste comprehensive disposal system processing capability is strong, the craft is advanced, and a high degree of resource utilization, according to the needs of different users and actual situation, Qunfeng heavy industry with different process routes, its treatment of complete functions, high degree of automation, can better safeguard kitchen waste can effective harmless, reduction processing, realize the fine separation of kitchen waste, ensure the process production line stable and reliable operation, to achieve kitchen waste treatment and resource utilization.
01. Industrial application
·Compost
·Incineration power generation
·Making biogas
02. Solutions
Introduction of kitchen waste anaerobic system
With the gradual implementation of garbage classification in China, Qunfeng Heavy Industry has put forward a unique dry anaerobic kitchen waste treatment process according to the characteristics of different regional cultures.

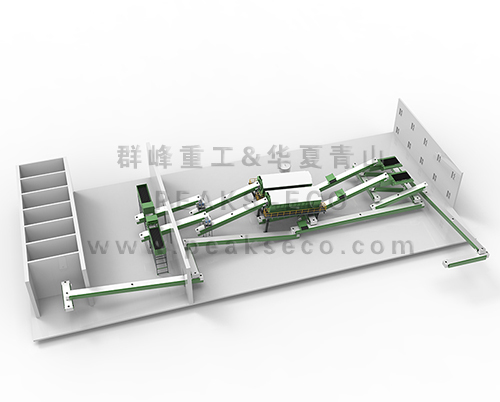

Kitchen waste pre-separation and treatment system suitable for dry anaerobic fermentation: At present, the domestic dry anaerobic fermentation is developing rapidly, and the popularity rate is gradually increasing, it is mainly more suitable for large-scale kitchen waste treatment. Qunfeng Heavy Industry introduced advanced pretreatment technology from Germany, aiming at dry anaerobic fermentation system, our company independently developed the system equipment to eliminate heavy and hard substances and entanglement, providing sufficient guarantee for the long-term and stable operation of the dry anaerobic fermentation tank. The system we mainly used was crushing - screening - fine screening - removal of impurities - dry anaerobic fermentation system process.

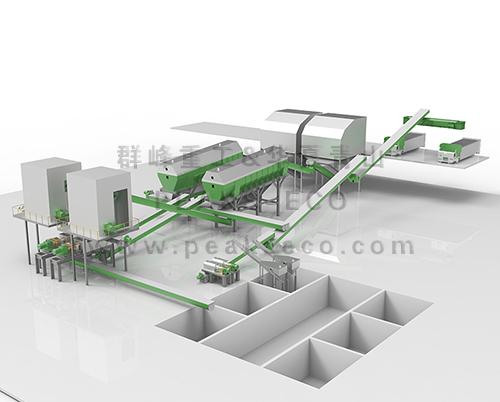

Introduction to wet Anaerobic System for Kitchen Waste (I)

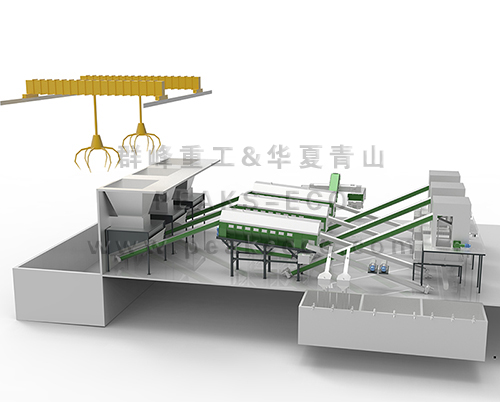

The main process includes grabbing feeding - screening - crushing - dehydration press - wet anaerobic fermentation. Its advantages and characteristics are to meet the premise of less loss of organic matter content, low water consumption, large processing capacity, not easy to cause material blockage.
Introduction to wet Anaerobic System for Kitchen Waste (2)
The process includes vehicle direct feeding -- coarse crushing -- screening -- pulping and pressing -- wet anaerobic fermentation. The treatment method is more suitable for the process route with small single-line treatment capacity, high water consumption, general treatment capacity, and can maximize the preservation of organic resources.
03. Common equipment

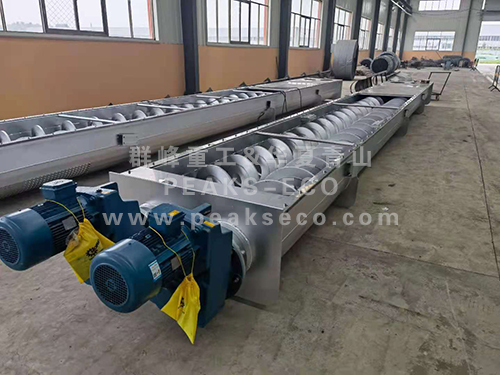

Screw conveyor
The equipment uses a shaftless screw, when the material from the conveyor into the hopper, relying on the rotation of the spiral blade will slide the material, along the U-shaped conveyor trough to the outlet, and with the press or garbage car supporting, the material for the next step.

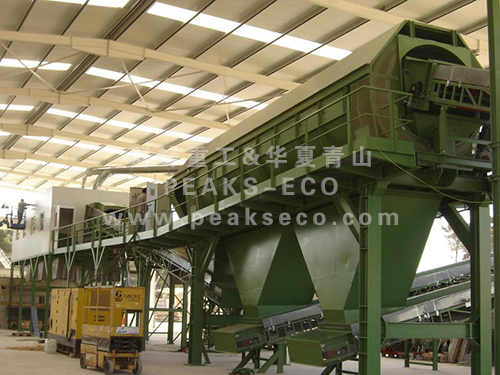

Drum screen
Roller screens are generally installed upstream of solid waste sorting systems and effectively screen different sizes of waste. They will feed the garbage flow into two garbage flows, according to the composition of garbage, volume, size, which can be entered into the roller sieve of the various components of the garbage separation.

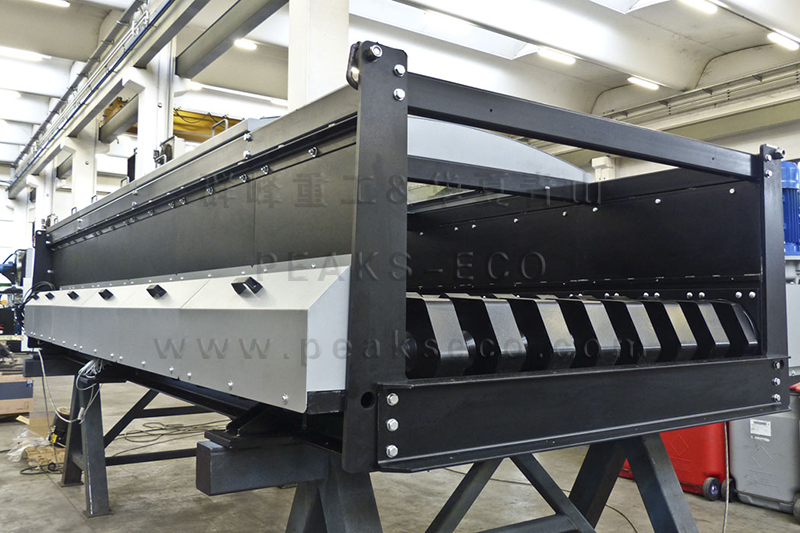

Disc separator
Waste with different particle sizes and shapes is separated by the rotation of the plate and the gap between the plates; By adjusting the gap between the plates, the materials with different particle sizes can be separated effectively and reasonably.

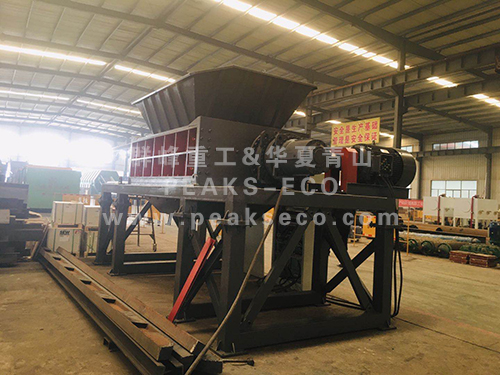

Shear crusher
Through shearing, tearing, and extrusion to reduce the size of the material, with strong structure, high cutting efficiency characteristics.

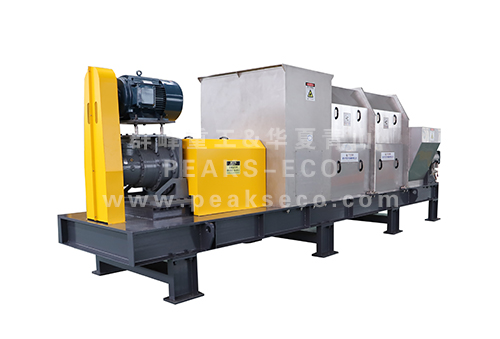

Extruding dehydrator
After the material enters the extruder, under the action of the taper screw shaft and the variable diameter screw, the material and liquid will be compressed in volume, the water will be extruded from the material, and then separated and discharged quickly through the porous filter barrel. The remaining solids will be discharged out of the machine under the conveyor action of the screw, so as to realize the solid-liquid separation.

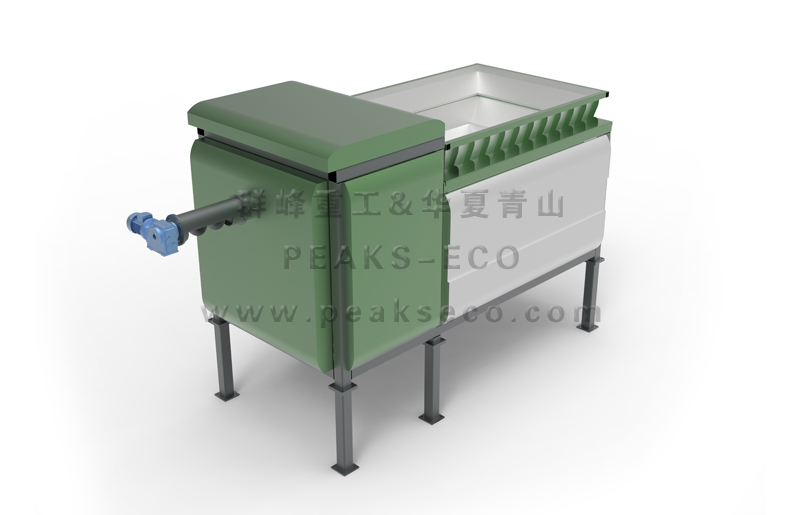

Organic matter separator
Use of vertical mechanical separation technology, the equipment is set to break three big functions in a body bag, separation and pulping, applicable to small and large kitchen waste, eat hutch garbage crushing pulp, can be fully realized slurry separation, the impurities such as organic matter in the plastic, ensure fully recycling organic matter, and reduce the processing difficulty of the subsequent process.
04. Performance characteristics
·High degree of automation. Through on-site feedback signals, such as current, liquid level, and temperature signal feedback, the feed quantity can be automatically controlled in accordance with the operating parameters of the equipment, so as to ensure the stability of the equipment operation and production operation, minimize the operation intensity of operators and save the input of labor costs.
·With strong adaptability, I can deal with all kinds of a restaurant -kitchen garbage caused by the difference of food culture between North and South, and ensure that the materials accepted by the system can go in and out without jam.
·Through step-by-step reduction treatment, all kinds of non-nutritional impurities are removed, ensuring the operation safety of the subsequent process equipment, reducing the difficulty of subsequent process disposal, and making the system run more smoothly without blockage.
·The functional modules of the system are clear in design, simple in structure, and high in maintainability. The key equipment is the independent research and development equipment adapted to the characteristics of the domestic restaurant -kitchen garbage. The equipment is stable and reliable, the spare parts are universal, and the maintenance is convenient and quick.
·Strong expansibility, which can increase the processing capacity by extending the operation time of equipment without adding any facilities, and equipped with perfect emergency treatment measures.
·Kitchen waste treatment process runs stably.
